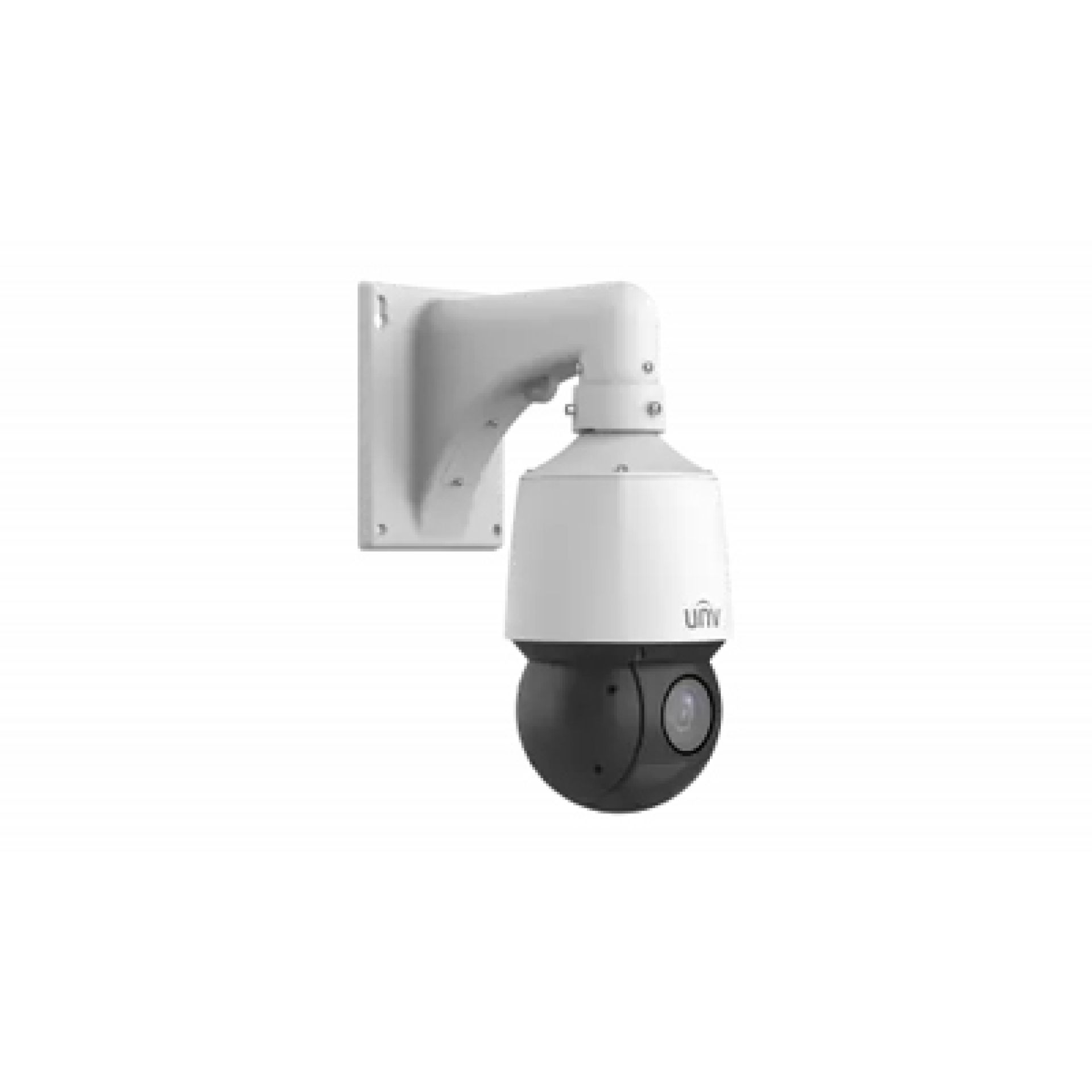

The Uniview 2MP  Network PTZ Dome with 16x Optical Zoom gives users the ability to detect subjects as far away as 4000 feet away, and provides crystal-clear HD video, even when zoomed. The 2MP 1/2.8’’ CMOS sensor produces HD 1080p video, and the user-controllable PTZ options allow users to manually pan, tilt and zoom the camera to get a better view of targets, as well as setting automatic patrol patterns. Advanced smart features like intrusion prevention,  Cross Line, Intrusion, and Enter/Leave Area detection minimizes false alarms and enables connected users to confidently detect, address and record both human and vehicle targets. LightHunter technology ensures ultra-high image quality and accurate colour reproduction in low illumination environments, even in conditions as dark as 0.003 Lux. 120dB true WDR technology also ensures perfectly even lighting without blowouts or shadowing-- even in direct sunlight. Smart IR kicks in for 0 Lux conditions, capturing high-quality videos of subjects up to 328 feet away, even when no additional light sources are available.

Additional features like automatic patrolling, scheduling, privacy masking are set via EZStation, UNV-Link, UNV-Link Pro. Powered by a PoE+ connection (IEEE 802.3at, max 20W) or external DC12V(±25%,3A) Ø 5.5 mm coaxial power plug (sold separately). IP67 ingress protection supports indoor or outdoor installation.

IPC6412LR-X16-VG Specs and Features

• Sensor: 1/2.8" CMOS
• Min. Illumination:
  • Colour: 0.003 Lux (F1.7, AGC ON)
  • 0 Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• WDR: 120dB
• S/N: >52dB
• Focal Length: 5 ~ 80 mm
• Optical Zoom: 16X
• Iris: F1.7 - F2.8
• Field of View :
  • (H) 51.70° ~ 4.89°
  • (V) 30.49° ~ 2.75°
  • (D) 63.59° ~ 5.77°
• DORI Distance (Lens): 5~80(mm)
  • DORI Distance (Detect) 77.6m~1241.4m(254.5ft~4072.8ft)
  • DORI Distance (Observe) 31.0m~496.6m(101.8ft~1629.1ft)
  • DORI Distance (Recognize) 15.5m~248.3m(50.9ft~814.6ft)
  • DORI Distance (Identify) 7.8m~124.1m(25.5ft~407.3ft)
• Illumination Distance (IR): 100 m (328.1 ft)
• IR On/Off Control: Auto/Manual
• Wavelength: 850 nm
• Video Description: Privacy Mask 24 areas, up to 4 areas per scene
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate:
  • Main Stream: 2MP(1920*1080),Max 30fps
  • Sub Stream: 720P(1280*720), Max 30fps
  • Third Stream: D1 (720*576), Max 30fps
• Video Bit Rate: 128 Kbps ~ 16 Mbps
• U-code: Supported
• ROI: Supported
• Video Stream: Triple Streams
• OSD: Up to 8 OSDs
• Exception Detection: Object Removed, Object Left Behind
• People Counting Support: People Flow Counting and Crowd Density Monitoring
• Smart Intrusion Prevention: Cross line detection, Intrusion detection, Enter area detection, Leave area detection (supports false alarm filtering and the classification of human, non-motor vehicle and vehicle)
• Defog: Digital Defog
• White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
• Digital Noise Reduction: 2D/3D DNR
• Flip: Normal, Flip Vertical, Flip Horizontal, 180°
• HLC: Supported
• BLC: Supported
• Smart IR: Supported
• Heatwave Reduction: Supported
• Basic Detection: Motion Detection, Tampering Alarm, Object Removed, Object Left Behind
• General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
• Edge Storage: Micro SD, up to 512 GB
• Network Storage: ANR, NAS (NFS)
• User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
• Network Protocols: SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• Security: TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
• Client: EZStation, UNV-Link, UNV-Link Pro
• Number of Presets: 1024
• Route Patrol: 16 patrols, up to 32 actions for each patrol
• Recorded Patrol: 16 patrols, up to 128 actions for each patrol
• Preset Patrol: 16 patrols, up to 64 presets for each patrol
• Patrol Stay Time: 15 s ~ 1800 s
• Network: 1 x RJ45 10M/100M Base-TX Ethernet
• Power: DC12V(±25%,3A), PoE+(IEEE 802.3at)
• Power Consumption: MAX 20W
• Power Interface: Ø 5.5 mm coaxial power plug
• Dimensions: Ø 162 x 293mm (Ø 6.4" x 11.5") (Ø x H)
• Weight: 1.79kg (3.95lb)
• Working Environment: -40 ? ~ 65 ? (-40 °F ~ 149 °F), Humidity: ≤95% RH (non-condensing)
• EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety: CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863)
• Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
