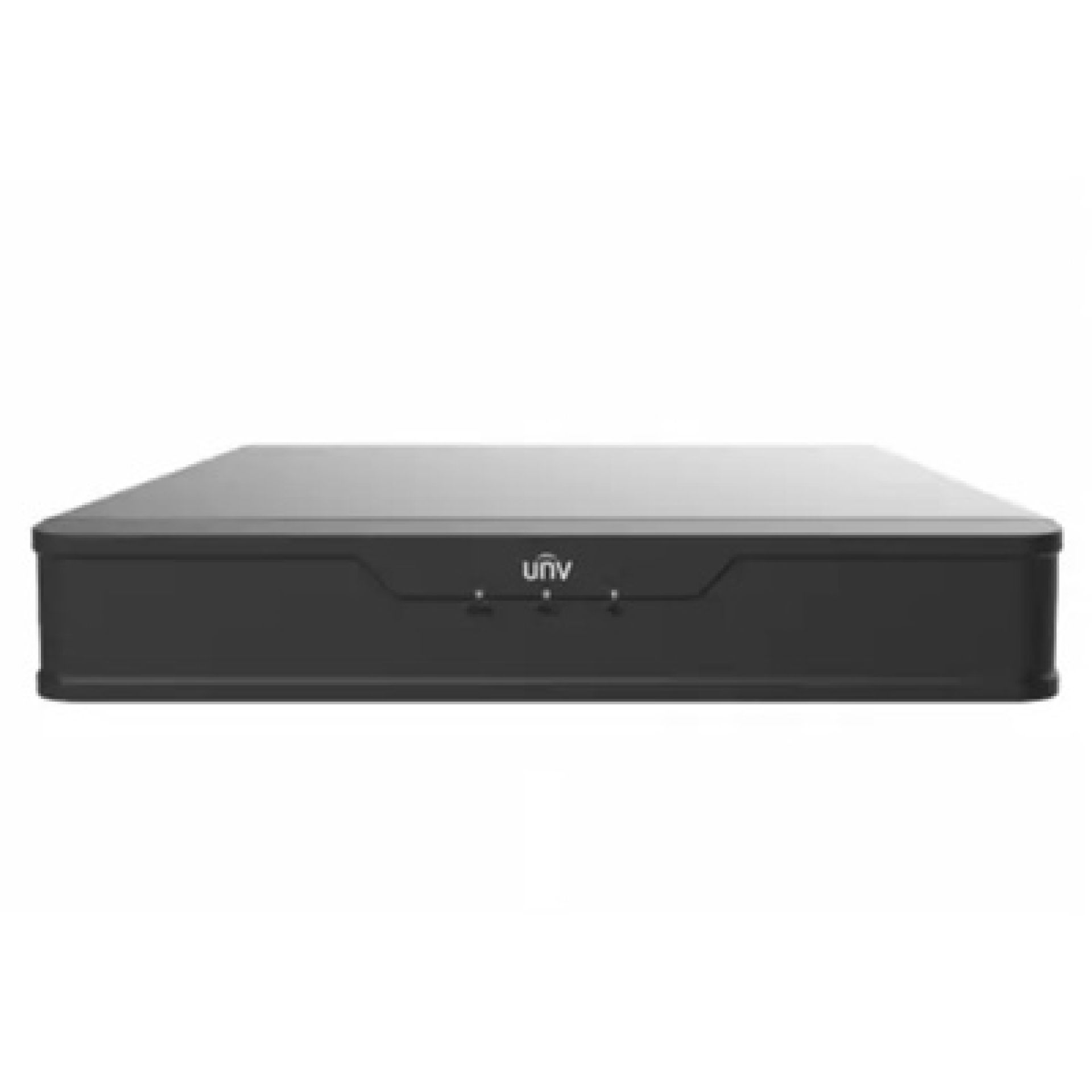

Uniview UNV 4 Channel NVR Features

• Support Ultra265/H.265 video formats
• 4/8-channel input
• Plug & Play with 4/8 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• 1 SATA HDD, up to 8TB for each HDD
• ANR technology enhances storage reliability when the network is disconnected
• Support cloud upgrade

Uniview UNV 4 Channel NVR Specifications

• Video/Audio Input:
  • IP Video Input: 4-ch
  • Audio Input: 1-ch, RCA
• Network:
  • Incoming Bandwidth: 80Mbps
  • Outgoing Bandwidth: 64Mbps
  • Remote Users: 128
  • Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
  • Browser:
    • IE(IE10/11) for Windows
    • Firefox (version 52.0 and above) for Windows
    • Chrome(version 45 and above) for Windows
    • Edge(version 79 and above) for Windows
• Video/Audio Output:
  • HDMI/VGA Output:
    • HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
    • VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
  • Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Audio Output: 1-ch, RCA
  • Two-way Audio: 1-ch, RCA(Using the audio input and output)
  • Audio Compression: G.711A, G.711U
  • Synchronous Playback: 4-ch
  • Liveview display: 1/4
  • Corridor Mode Screen: 3/4
• Snapshot:
  • FTP/Schedule/Event Snapshot: 4-ch snapshot, up to D1 resolution
• Decoding:
  • Decoding format: Ultra 265/H.265
  • Live view/Playback: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Capability: 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30
• Hard Disk:
  • SATA: 1 SATA interfaces
  • Capacity: Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
• Smart:
  • VCA Detection by Camera: Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection)
  • VCA Search: Face Search, Behavior Search, People Counting Report
  • People counting: People Flow Counting, Crowd Density Monitoring
  • Smart Intrusion Prevention (SIP), Face Detection, SMD by Camera: Total 4-ch
• General Alarm:
  • General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
  • Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
• External Interface:
  • Network Interface: 1 RJ-45 10M/100M self-adaptive Ethernet Interface
  • USB Interface:
    • Front panel: 1 x USB2.0
    • Rear panel: 1 x USB3.0
  • RS232: NA
  • RS485: NA
  • Alarm In: NA
  • Alarm Out: NA
• PoE:
  • Interface: 4 RJ-45 10M/100M self-adaptive Ethernet Interface
  • Max Power:
    • Max 30W for single port
    • Max 50W in total
  • Supported Standard: IEEE 802.3af/at
• General:
  • Power Supply:
    • 48V DC/1.35A
    • Power Consumption: ≤ 10W (without HDD)
  • Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
  • Dimensions (W×D×H): 260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")
  • Weight (without HDD): ≤ 0.98Kg (2.16lb)
• Certification:
  • Certification: CE, FCC, UL, RoHS, WEEE
  • CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
  • FCC: Part15 Subpart B, ANSI C63.4
